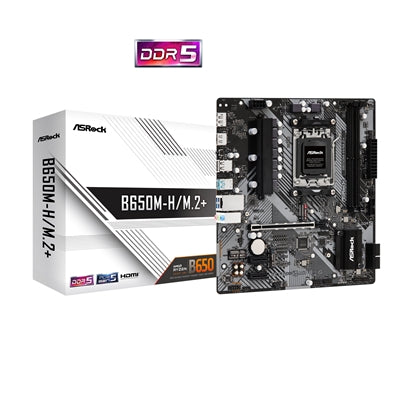

ASRock B650M-H/M.2+ AMD AM5 Socket Motherboard

ASROCK · Motherboards

ASRock B650M-H/M.2+ AMD AM5 Socket Motherboard

Manufacturer part no.: B650M-H/M.2+
Brand: ASROCK

£84.05

inc. VAT · £70.04 ex. VAT · UK VAT at 20%

Low stock

Order before 5pm Monday to Friday for same-day despatch.

Next working day delivery from £7.20 · 14-day returns · Faulty within 30 days, full refund

Specification

Socket	AM5
CPU Compatibility	AMD Ryzen 9000/8000/7000
Chipset	AMD B650
Form Factor	Micro ATX
Memory Slots	DDR5 - 2 Slots
M.2 Compatibility	PCIe 5 / PCIe 4 / PCIe 3
Wi-Fi	No

Warranty

2 Year Return to Base Warranty. Warranty claims are handled by us on 0118 359 2220.

Compatibility · socket AM5

Processors that fit this board

See all 15 processors for socket AM5

ASRock B650M-H/M.2+ AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, GbE LAN, 1x DisplayPort / 1x HDMI Port

B650M-H/M.2+

Unique Feature
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

CPU
- Supports AMD Socket AM5 Ryzen? 9000, 8000 and 7000 Series Processors*

Chipset
- AMD B650

Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA? graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H

Wireless LAN
- N/A

Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors

RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Form Factor
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

OS
- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
