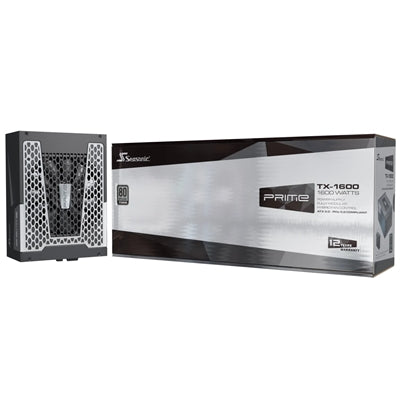

Seasonic PRIME TX ATX 3.1 (PRIME-TX-1600-ATX30) 1600W PSU, 135mm Fan, 80 PLUS Titanium, Fully Modular, Individual Black Cables with Braided Pattern, 12 Years Warranty
  • Seasonic PRIME TX ATX 3.1 (PRIME-TX-1600-ATX30) 1600W PSU, 135mm Fan, 80 PLUS Titanium, Fully Modular, Individual Black Cables with Braided Pattern, 12 Years Warranty
Seasonic PRIME TX ATX 3.1 (PRIME-TX-1600-ATX30) 1600W PSU

SEASONIC · Power Supplies

Seasonic PRIME TX ATX 3.1 (PRIME-TX-1600-ATX30) 1600W PSU

Manufacturer part no.
PRIME-TX-1600-ATX30
Brand
SEASONIC
£459.38

inc. VAT · £382.82 ex. VAT · UK VAT at 20%

Out of stock

Specification

Wattage1600W
Size/VersionATX 3.1
ModularFully
SATA Connections16
CertificationTitanium
ColourBlack

Warranty

Seasonic Limited Warranty. Warranty Type: Limited. Warranty Coverage: Seasonic warranty covers manufacturing defects and faults.Warranty Instructions: Within 3 Years: If a power supply becomes faulty within 3 years of the original purchase date, the product can be returned to Target for credit or replacement (subject to stock availability) via our Online RMA System. Seasonic Direct (After 3 Years): After the initial 3 year RTB period, please contact Seasonic directly for support within the remaining warranty period.Warranty Information: Warranty claims are handled by us on 0118 359 2220.

Seasonic PRIME TX ATX 3.1 (PRIME-TX-1600-ATX30) 1600W PSU, 135mm Fan, 80 PLUS Titanium, Fully Modular, Individual Black Cables with Braided Pattern, 12 Years Warranty

The Seasonic PRIME TX 1600W ATX 3.1 is a flagship fully modular power supply engineered for extreme gaming systems, professional workstations and other demanding high-power builds. Its 80 PLUS Titanium certification delivers exceptional efficiency, while ATX 3.1 and PCIe 5.1 compatibility provide support for modern high-performance graphics cards. Micro Tolerance Load Regulation, premium 105°C Japanese electrolytic capacitors and Digital Hybrid Fan Control with a 135mm Fluid Dynamic Bearing fan deliver outstanding stability, efficiency and quiet operation.

Key Features
80 PLUS Titanium (94% efficiency at 50% system load).
ATX 3.1 and PCIe 5.1 support.
Native 12V-2x6 connectivity for modern graphics cards.
Fully Modular cable design.
135mm Fluid Dynamic Bearing (FDB) fan.
Digital Hybrid Fan Control.
Micro Tolerance Load Regulation.
105°C-rated Japanese electrolytic capacitors.
Comprehensive OCP, OPP, OTP, OVP, SCP and UVP protection.
12-year manufacturer's warranty.

Full Specification
Model:
PRIME TX 1600W ATX 3.1

Manufacturer Part Number:
PRIME-TX-1600-ATX30

Output Power:
1600W continuous power

Efficiency:
80 PLUS Titanium (94% efficiency at 50% system load)

Voltage Rails:
Single +12V rail

+12V Output:
133.3A / 1600W

ATX Form Factor:
ATX/EPS

ATX Standard:
ATX 3.1

PCIe Standard:
PCIe 5.1

Cabling:
Fully Modular

Connectors:
1 x 20+4-pin ATX
3 x 4+4-pin CPU/EPS
2 x native 12V-2x6
6 x 6+2-pin PCIe
16 x SATA
2 x SATA 3.3V
3 x 4-pin Molex

Fan:
135mm Fluid Dynamic Bearing (FDB) fan

Fan Speed Control:
Digital Hybrid Fan Control

Power Input:
100-240V AC, 50/60Hz; full 1600W output available from 115-240V AC

Operating Temperature:
0-50°C

Power Output:
DC outputs: +12V, +5V, +3.3V, -12V and +5VSB

Cable Set:
Individual black cables with braided pattern

Protection:
OCP - Over Current Protection
OPP - Over Power Protection
OTP - Over Temperature Protection
OVP - Over Voltage Protection
SCP - Short Circuit Protection
UVP - Under Voltage Protection

Special Features:
Micro Tolerance Load Regulation, 105°C Japanese electrolytic capacitors, native PCIe 5.1 12V-2x6 connectivity

Warranty:
12-year manufacturer's warranty

Dimensions without cable (L x W x H), (mm)
210 x 150 x 86
