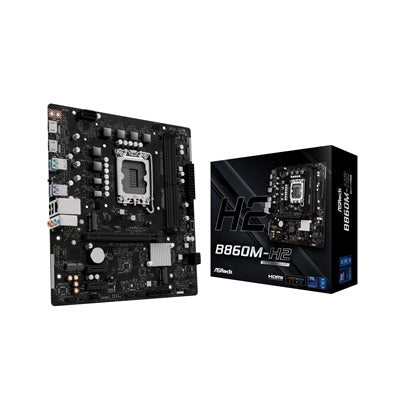

ASRock B860M-H2 Intel 1851 Socket Motherboard
  • ASRock B860M-H2 Intel 1851 Socket Motherboard
ASRock B860M-H2 Intel 1851 Socket Motherboard

ASROCK · Motherboards

ASRock B860M-H2 Intel 1851 Socket Motherboard

Manufacturer part no.
B860M-H2
Brand
ASROCK
£106.80

inc. VAT · £89.00 ex. VAT · UK VAT at 20%

Out of stock

Specification

Socket1851
CPU CompatibilityIntel Ultra
ChipsetIntel B860
Form FactorMicro ATX
Memory SlotsDDR5 - 2 Slots
M.2 CompatibilityPCIe 5 / PCIe 4
Wi-FiYes

Warranty

2 Year Return to Base Warranty. Warranty claims are handled by us on 0118 359 2220.

ASRock B860M-H2 Intel 1851 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2x USB-C Port, GbE LAN, 2x HDMI Port

ASRock B860M-H2

Key Features
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
5+1+1+1+1 Power Phase
2 x DDR5 DIMMs
Supports Dual Channel, up to 8333+ (OC)
1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1, 1 x M.2 Key E for WiFi
Graphics Output Options: 2 HDMI
Realtek ALC897 7.1 CH HD Audio Codec
4 x SATA3
1 x Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 x USB 3.2 Gen2x2 Type-C (Rear)
1 x USB 3.2 Gen1 Type-C (Front)
5 x USB 3.2 Gen1 (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Realtek Gigabit LAN
Supports BIOS Flashback

BLAZING M.2 (PCIE GEN5 x4)
Supports up to 2 x NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard.

Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

USB 3.2 Gen2x2 Type-C
The USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate.

Front USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C that delivers up to 5Gbps data transfer rate.

Polychrome RGB
The RGB led header allows user to create unique PC style easily.

M.2 (KEY E) For WiFi
Users may upgrade wireless module by M.2 (Key E) slot.

Specifications

Platform
Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm

Unique Features
Superb Productivity
PCIe Gen5 (M.2)
Dual Channel DDR5
Rock-Solid Durability
5+1+1+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer

CPU
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration

Chipset
Intel B860

Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)
1DPC 1R Up to 8333+ MHz (OC), 6400 MHz Natively.
1DPC 2R Up to 6200+ MHz (OC), 6400 MHz Natively.
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 3.0x

Expansion Slot
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports NVMe SSD as boot disks

Graphics
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Intel Xe
LPG Graphics Architecture
2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H

USB
CPU:
1 x USB 3.2 Gen2x2 Type-C (Rear)
Chipset:
1 x USB 3.2 Gen1 Type-C (Front)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
All USB ports support ESD Protection

Rear Panel I/O
2 x Antenna Mounting Points
2 x HDMI Ports
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Supports in total up to 12V/3A, 36W LED Strip
Support in total up to 5V/3A, 15W LED Strip
CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

BIOS Feature
256Mb AMI UEFI Legal BIOS with GUI support

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

OS
Microsoft Windows OS 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

Accessories
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
